Automatic box wrapping machine is a accessory equipment for making rigid box, packaging boxes. With advantages of the small size, easy operation, fast speed cycle. This machine can automatically start to edge fold and forming and wrap of box. The advance PLC and variable frequency can freely control its speed and it equipped with safety devices to ensure fast and safe production. Use electric brushes to make the output rigid boxes more tightly and smoothly.
Specifications
Paper size (A*B) | Min 100*200mm | Max 580*800mm |
Paper thickness | 100-200g/㎡ | |
Cardboard thickness | T 1-3mm | |
Box size(W*L*H) | Min 50*100*15mm | Max 320*420*120mm |
Edge folding depth | Rmin 10mm | Rmax 70mm |
Production speed | 10-20 boxes/min | |
Power | 10kw/380v/3phase | |
Heater power | 7.8kw | |
Air supply | 10L/min 1.6Mpa | |
Machine weight | 3500kg | |
Machine dimensions | 7200*2100*3250mm (L*W*H) | |

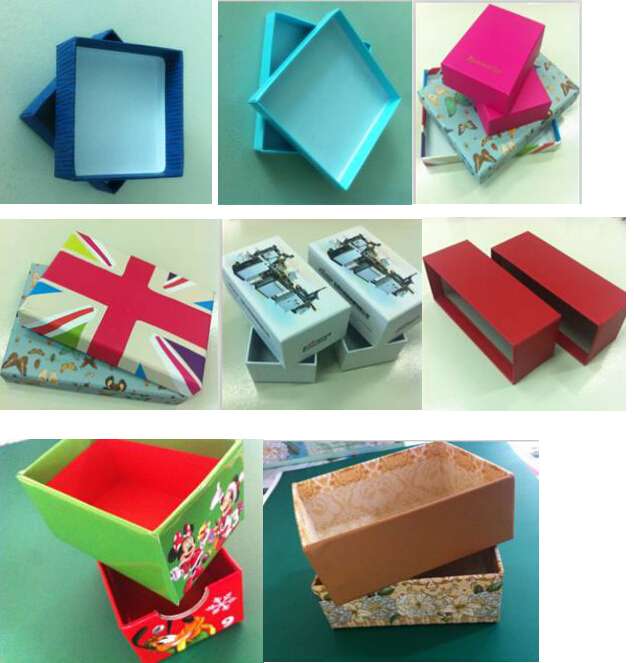

Box sample:
