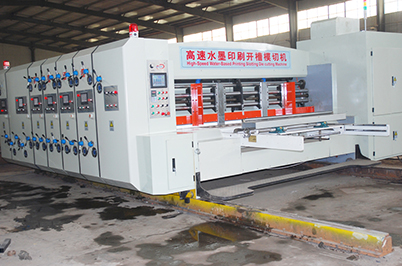

Name : flexo printer slotter die cutter

Inquery

FEATURES

Functions and characteristics:
● The machine is manufactured with the aims to meet the tough operation requirement, reliable, good function and safe. Hence, standard parts, fast set-up and easy to operate are our advantages.
●Best material and part are used.
●Gear train are hardened and ground (Hardness>60HRC).
●Automatic zero setting.
●All clearance adjustment is manual or motorize.
●Chrome plated shafts.
●PLC with multifunction touch control, Repeat orders storing and recalling for fast set-up.

Printing roller diameter: 910mm (printing plate 6.0mm):

Data / Model	910×1600	910×1800	910×2000
Max. mechanical speed(pcs/min)	160	160	160
Max.feeding size(mm)	910×1800mm	910×2000mm	910×2200mm
Min. feedding size(mm)	280×650mm	280×650mm	280×650mm
Max. printing area(mm)	810×1600mm	810×1800mm	810×2000mm
Paperboard thickness(mm)	2-11mm	2-11mm	2-11mm
Thickness of printing plate(mm)	6mm	6mm	6mm

Printing roller diameter 1200mm (including printing plate 7.2mm):

Data / Model	1200×2000	1200×2200	1200×2400	1200×2600
Max.mechanial speed(pcs/min)	140	140	140	140
Max.feeding size(mm)	1200×2200mm	1200×2400mm	1200×2600mm	1200×2800mm
Min.feedding size(mm)	360×650mm	360×650mm	360×650mm	360×650mm
Max.printing area(mm)	1100×2000mm	1100×2200mm	1100×2400mm	1100×2600mm
Paperboard thikness(mm)	2-11mm	2-11mm	2-11mm	2-11mm
Thickness of printing plate(mm)	7.2mm	7.2mm	7.2mm	7.2mm

Printing roller diameter 1500mm (including printing plate 7.2mm):

Data / Model	1500×2200	1500×2400	1500×2600	1500×2800
Max.mechanial speed(pcs/min)	120	120	120	120
Max.feeding size(mm)	1500×2400mm	1500×2600mm	1500×2800mm	1500×3000mm
Min.feedding size(mm)	450×650mm	450×650mm	450×650mm	450×650mm
Max.printing area(mm)	1400×2200mm	1400×2400mm	1400×2600mm	1400×2800mm
Paperboard thikness(mm)	2-11mm	2-11mm	2-11mm	2-11mm
Thickness of printing plate(mm)	7.2	7.2	7.2	7.2
